HCL BigFix Service Management - On Premise Deployment Architecture and Considerations

1. Introduction

1.1 Purpose of Document

This document serves as a comprehensive document for the on-premise deployment of the HCL BigFix Service Management on a Kubernetes-based environment. It provides architecture considerations, high-level and low-level designs, assumptions and security considerations. The application is owned, developed, and maintained by HCL Software, while the underlying infrastructure—including , but not limited to, compute resources, networking, storage, security policies, backup etc is fully managed and maintained by the client.

The goal of this guide is to provide information about the the architecture of the deployment ensuring all stakeholders are aligned on their responsibilities and expectations throughout the lifecycle of the application.

1.2 Scope of Document

This document covers:

  • Architecture and infrastructure prerequisites for deploying the application on client-managed IT Infrastructure.
  • High-level design (HLD) of the application, including system components, data flows, and integration points.
  • Low-level design (LLD) with specific deployment artifacts Kubernetes Namespaces
  • Roles and Responsibilities of different stake holders involved

1.3 Out of Scope

This document does not intend to provide the guide on how to use the application and various components of the application. Additionally this document will also not provide instructions on how to deploy and upgrade the application.

1.4 Intended Audience

This document is intended for the following stakeholders:

  • Client IT Infrastructure Teams: For understanding the infrastructure requirements and supporting the setup of the environment.
  • Solution Architects: For reviewing architecture compliance and security requirements.
  • Application Support Teams: For post-deployment operations and maintenance.

A foundational understanding of Kubernetes, containerized applications, and Linux-based systems is assumed for readers of this document.

2 Glossary of Terms Used

Term Definition
Kubernetes (K8s) An open-source system for automating deployment, scaling, and management of containerized applications.
Pod The smallest deployable unit in Kubernetes that can contain one or more containers.
Service A Kubernetes resource that exposes a logical set of Pods and a policy to access them.
StatefulSet A Kubernetes controller used for managing stateful applications.
Helm A package manager for Kubernetes that allows defining, installing, and upgrading applications using charts.
PVC (Persistent Volume Claim) A request for storage resources by a user in Kubernetes.
Ingress A Kubernetes API object that manages external access to services, typically HTTP/S traffic.
ConfigMap A Kubernetes resource used to store non-confidential configuration data such as application settings.
Secret A Kubernetes resource used to store confidential data like passwords, tokens, and SSH keys securely.
RBAC (Role-Based Access Control) A security mechanism in Kubernetes to regulate access to resources based on the roles assigned to users or applications.

3 Deployment Overview

HCL BigFix Service Management is designed as a containerized, microservices-based application that runs on Kubernetes. In the on-premise deployment model:

  • The client provides and manages the infrastructure, including but not limited to , compute resources, networking, storage, load balancers, DNS, and related system software (including patching and upgrades)
  • HCL Software owns the application—responsible for delivering application containers, Kubernetes manifests (YAML files or Helm charts), configuration artifacts, and initial deployment. The support for this application may be provided by partners of HCL Software or the persons authorized by HCL Software or may be owned by client depending on the contractual agreement.

This separation allows the client to maintain control over their IT landscape while benefiting from a consistent, vendor-supported application model.

3.1 Ownership and Responsibilities Matrix

The following matrix outlines the division of responsibilities between the client and HCL Software. This matrix outlines the standard division of responsibilities based on current understanding and agreed deployment practices. Any component, task, or activity not explicitly listed shall be considered as out of scope for HCL Software. In case of ambiguity or evolving requirements, ownership can be jointly reviewed and agreed upon through mutual discussion between the client and HCL Software stakeholders.

Component / Task Client Responsibility HCL Software Responsibility
IT Infrastructure Provisioning :white_check_mark: :cross_mark:
Kubernetes Cluster setup :cross_mark: :white_check_mark:
Node/VM Provisioning & OS Patching :white_check_mark: :cross_mark:
Networking & Firewall Rules :white_check_mark: :cross_mark:
Load Balancer Configuration :white_check_mark: :cross_mark:
DNS Configuration :white_check_mark: :cross_mark:
Persistent Storage Setup :white_check_mark: :cross_mark:
TLS/SSL Certificates :white_check_mark: :cross_mark:
Mailbox / SMTP Provisioning :white_check_mark: :cross_mark:
Encryption of Data :white_check_mark: :cross_mark:
Security and Monitoring :white_check_mark: :cross_mark:
Data Backup and Restore :white_check_mark: :cross_mark:
Replication of data between locations :white_check_mark: :cross_mark:
DR Invocation and Restoration :white_check_mark: :cross_mark:
Security Patching and Upgrades (All components) :white_check_mark: :cross_mark:
Application Container Images :cross_mark: :white_check_mark:
Kubernetes Manifests / Helm Charts :cross_mark: :white_check_mark:
Application Configuration :cross_mark: :white_check_mark:
Application Upgrades :warning: Shared :warning: Shared
Configuration Templates :cross_mark: :white_check_mark:
CI/CD Integration (if needed) :warning: Shared :warning: Shared
Deployment Execution :warning: Shared :warning: Shared
Monitoring & Logging Integrations :warning: Shared :warning: Shared
Post-Deployment Support :warning: Shared :warning: Shared

:warning: “Shared” indicates that collaboration is required between both parties to ensure proper setup and operational continuity.

3.2 Deployment Environment Requirements

For a successful deployment of the application on an on-premise Kubernetes environment, specific responsibilities and prerequisites must be fulfilled by both parties.

3.2.1 Infrastructure Provisioning & Maintainance (Client Responsibility)

The client is responsible for provisioning and maintaining the underlying infrastructure as per the hardware and resource specifications shared during the RFP phase. This includes:

  • Provisioning of virtual machines (VMs) with the required CPU, memory, disk, and OS configuration.
  • VMs to be provisioned with supported operating system (Ubuntu 24.04 LTS or RHEL 8/9 LTS (x86_64) )
  • Ensuring high availability, redundancy, and sufficient capacity for scaling.
  • Network infrastructure (switches, firewalls, load balancers) setup and routing.
  • Storage infrastructure (block/file-based) accessible by the VMs.
  • A UI jump server (bastion host) for the implementation team to access the infrastructure securely
  • Remote access to the IT Infrastructure for the deployment team
  • During the installation and setup, internet access or appropriate egress policies to access required external services/portals

3.2.2 Application Provisioning (HCL Software Responsibility)

HCL Software or it’s partner will be responsible for:

  • Installing and configuring the Kubernetes cluster on the client-provided VMs.
  • Deploying supporting components like ingress controllers, certificate managers, and metrics servers.
  • Preparing the environment for application deployment (namespaces, RBAC, etc.).
  • Deploying and configuring the application

3.2.3 Readiness Checklist

Below is the checklist, with bare minimum requirement, meant to serve as a baseline reference. The client may refer to their own infrastructure onboarding or environment readiness checklist in addition to this one to ensure full alignment with their operational standards

Checklist Item Description
VMs Provisioned All required virtual machines are provisioned in accordance with the shared specifications. These VMs will host the Kubernetes control plane and worker nodes.
Operating System Installed and Patched A supported Linux distribution is installed on all VMs, with the latest security patches and kernel updates applied.
Internal Connectivity Established All provisioned VMs should allow all internal communication with each other over required internal ports (e.g., 6443 for Kubernetes API, 2379 for etcd, 10250 for kubelet). This includes both control plane, worker nodes, microservices, and other components.
External Network Access Internet access or an internal proxy is available for the VMs, allowing access to external container registries for pulling application and Kubernetes system images.
Storage Connectivity Configured Shared or dedicated storage, both mounted and unmounted, and accessible on the required nodes. This storage will be used for persistent volume claims by the application.
DNS Resolution Verified Proper DNS configuration is in place. All cluster nodes must be able to resolve internal and external hostnames. Reverse DNS lookup should also be tested for compatibility with cluster components.
Time Synchronization Enabled Network Time Protocol (NTP) or an equivalent mechanism is configured across all VMs to ensure consistent system time, which is critical for distributed system coordination.
Firewall and Security Rules Applied Necessary firewall ports are opened and security group rules applied to allow inter-node communication and cluster operations.
Load Balancer Provisioned If the application or control plane requires a load balancer, appropriate IP addresses or FQDNs must be allocated and routing configured.
SSL/TLS Certificates Provisioned Application requires HTTPS endpoints or mutual TLS authentication, certificates should be provisioned in advance by the client’s IT/security team.
SMTP/Mailbox Configuration Shared Details of the client’s internal email relay server or SMTP configuration should be provided for the application to send email notifications.
Monitoring Integration Ready (Optional) If application monitoring integration is planned, endpoint access and credentials for tools should be prepared and shared with the deployment team.

3.3 Deployment Scenarios

The application supports the following deployment environments:

  • Staging: For testing and internal validation.
  • Production: Full-scale deployment with HA ( if applicable) to support the agreed upon volume of requests

Each environment must be provisioned with separate namespaces and configuration profiles to ensure isolation and reliability.

3.4 Security and Patching Responsibility

The client is solely responsible for applying operating system (OS) patches, Kubernetes cluster and component upgrades, and remediating security vulnerabilities across the infrastructure stack (including, but not limited to, Kubernetes, OS, network, storage, and supporting middleware). As a software provider, HCL Software is responsible only for the maintenance of the application which will be provided as version updates related to the application itself. The secure usage, configuration, and operational governance of the application within the client’s environment—including identity management, role-based access control, and network-level controls—remain the client’s responsibility.

4 High Level Design

4.1 System Components Overview

HCL BigFix Service Management is a cloud-native, containerized solution composed of multiple microservices that communicate via REST APIs and message queues. It is designed for scalability, fault tolerance, and seamless integration within enterprise ecosystems. The application architecture is layered as follows:

  • Frontend/UI Layer: A web-based interface exposed via Ingress and served over HTTPS.
  • API Layer: Stateless backend services that expose RESTful APIs. These services handle user requests, business logic, and service orchestration.
  • Service Layer: Microservices performing domain-specific processing, communicating via internal service mesh or HTTP/gRPC.
  • Data Layer: Persistent data stores, such as relational databases (PostgreSQL) and NoSQL systems (Redis, MongoDB), accessed through internal Kubernetes services.
  • Infrastructure/Platform Layer: Supporting components such as message brokers (e.g., Kafka), caching services, observability tools , and security services.

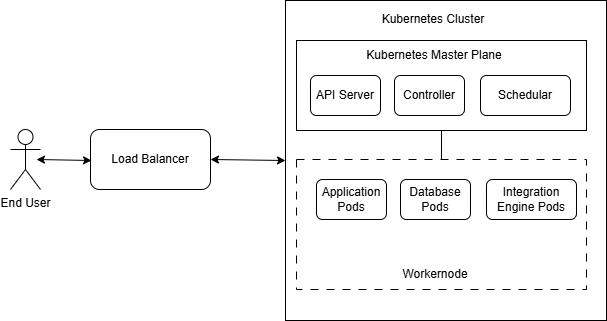

4.2 Logical Diagram

Below diagram illustrates the high-level logical architecture of HCL BigFix Service Management deployed on a Kubernetes cluster, highlighting the key components involved in user interaction, application deployment, and cluster orchestration.

End User Interaction

  • The End User interacts with the application through a user interface or API endpoint.
  • All traffic from the end user is routed via a Load Balancer, which acts as the entry point to the Kubernetes environment.

Load Balancer

  • The Load Balancer distributes incoming traffic to the appropriate backend services within the Kubernetes cluster.
  • It ensures high availability and fault tolerance by managing requests across multiple pods or services.
  • It also abstracts the underlying services, presenting a unified access point to the user.

Kubernetes Cluster

The cluster is divided into two primary layers:

a. Kubernetes Master Plane

This layer contains the control components responsible for managing the state and orchestration of the cluster:

  • API Server: The front-end for the Kubernetes control plane; receives and validates requests.
  • Controller: Watches the state of the cluster and attempts to maintain the desired state.
  • Scheduler: Assigns workloads (pods) to available nodes based on resource availability and constraints.

b. Worker Node Layer

Labelled here as “Workernode”, this is where the actual application workloads run. The number of workernodes will depend on the number of workernodes required to support the identified volume of requests It’s further divided into:

  • Application Pods: These host the core business logic and microservices of the application.
  • Database Pods: These provide persistent data storage services required by the application (e.g., PostgreSQL, MongoDB).
  • Integration Engine Pods: These handle integration with external systems, third-party services, or legacy applications via RESTful APIs

4.3 Deployment Topology

The application follows a modular deployment topology:

  • Namespaces: Separate namespaces for different uses.
  • Horizontal Scaling: Stateless services support auto-scaling based on CPU/memory metrics.
  • Affinity Rules: Microservices are grouped using node affinity/anti-affinity rules for optimized placement.
  • Storage: Stateful services (DBs, brokers) use Kubernetes PersistentVolumeClaims backed by client-provided storage.

4.4 External Integrations

The application supports integrations with various enterprise systems via configurable endpoints and APIs. Integration Engine which acts as an integration hub can enable integrations with:

  • Email Server (SMTP): For system alerts, reports, and notifications.
  • LDAP/AD: For user authentication and SSO.
  • Monitoring Tools: Integration with tools like Moogsoft, iAutomate.
  • Multiple ITSM Platforms: Integrations with any third party ITSM tools

5 Low Level Design

5.1 Kubernetes Resource Specifications

The application is deployed using the following core Kubernetes resources:

Resource Type Purpose
Deployment Manages stateless application pods and ensures replica consistency.
StatefulSet Used for stateful components such as databases, ensuring stable network IDs.
Service Exposes application components internally and externally (ClusterIP, NodePort, LoadBalancer).
Ingress Routes external HTTP/S traffic to services using domain-based rules.
ConfigMap Stores non-sensitive configuration values that are injected into containers.
Secret Stores sensitive information such as DB passwords, tokens, and TLS certs.
PersistentVolumeClaim (PVC) Requests storage resources from client-provided infrastructure.
Namespace Segregates application environments

5.2 Helm Chart and Templating

The deployment uses Helm to manage Kubernetes manifests. Helm charts package all deployment resources, enabling:

  • Parameterized deployments using values.yaml
  • Environment-specific configurations
  • Easy rollback and versioning
  • Integration with CI/CD pipelines

5.3 Namespace Strategy

Namespaces are used to isolate various components of deployment:

  • Prod/Staging, Integration-Engine, Kafka etc – usage specific namespaces
  • ingress-nginx – Dedicated namespace for Ingress controllers

Role-Based Access Control (RBAC) is applied at the namespace level to enforce least privilege.

5.4 Persistent Storage

  • Databases and stateful workloads use PVCs.
  • The storage backend (e.g., NFS, iSCSI, Ceph) is client-provided and configured prior to deployment.

5.5 Configuration Management

  • ConfigMaps and Secrets are used to externalize configuration.
  • All secrets are stored encrypted and mounted as environment variables or volumes.
  • Changes to configurations can be rolled out dynamically through re-deployments or reload endpoint

5.6 Health Checks and Auto-recovery

  • livenessProbe and readinessProbe are configured on all pods.
  • Kubernetes ensures:
    • Self-healing through restarts
    • Graceful rollouts via rolling updates
    • Rescheduling on healthy nodes in case of failures

5.7 Network Policies and Security

  • Internal communication between pods is controlled using Kubernetes NetworkPolicies.
  • Secrets are managed through Kubernetes Secrets and optionally integrated with a Vault provider.
  • TLS is enabled at ingress level for secure communication from external clients.

5.8 Key Components of Deployment

Below information is for the core components for HCL BigFix Service Management deployment and is indicative in nature. While the architecture would remain same the actual names of deployments/pods/replica sets etc. would vary by each client for their deployment. The details of application and database pods is not described in this document but follows the same structure. The detailed diagram for each deployment may be provided, upon request, for each client for their specific deployment

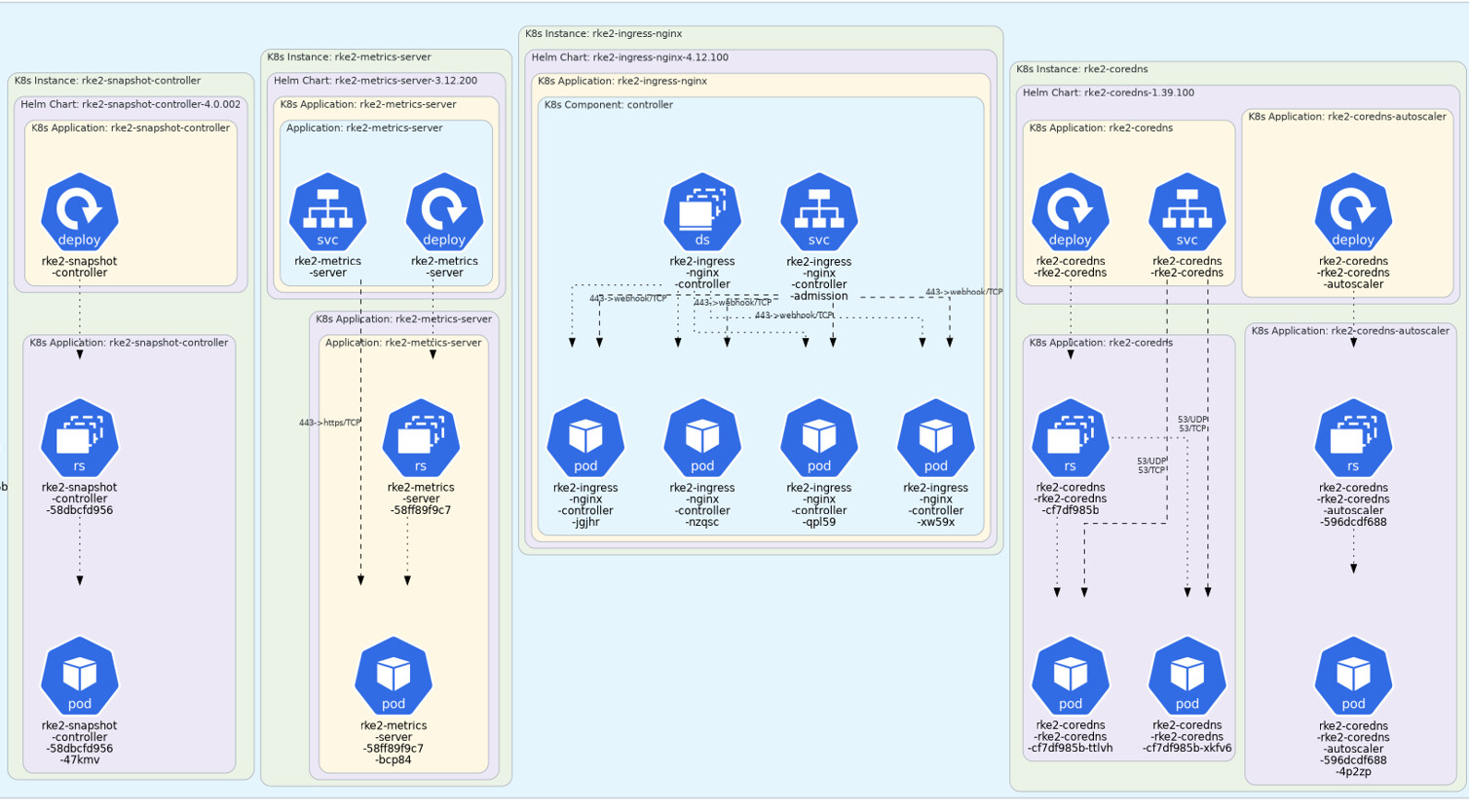

5.8.1 Kubesystem

System Components Overview
K8s Instance Application / Component Type Sub-components / Pods
rke2-snapshot-controller rke2-snapshot-controller Deployment ReplicaSet: rke2-snapshot-controller-58dbfcd956 → Pod: -47kmv
rke2-metrics-server rke2-metrics-server Deployment ReplicaSet: rke2-metrics-server-58ff89fc7 → Pod: -bcp84
rke2-ingress-nginx ` rke2-ingress-nginx-controller DaemonSet Multiple Pods: -jgjhr, -n2qsc, -qpl59, -xw59x
rke2-ingress-nginx-controller-admission Service Handles webhook validation and admission traffic
rke2-coredns rke2-coredns, rke2-coredns-autoscaler Deployment ReplicaSets → Pods: -ttlvh, -xkfv6, -4pzzp
Service and Network Connections
Source Component Target Component Port(s) Protocol Purpose / Notes
Ingress-NGINX Controller (Pods) Webhook Service (controller-admission) 443 TCP Admission validation for Ingress resources
Ingress-NGINX Webhook Service API Server (Implicit) 443 TCP Communicates with Kubernetes API for webhook registration/validation
Metrics Server (Pod) API Server (Implicit) 443 TCP Collects resource usage statistics from kubelets
CoreDNS (Pod) Internal Services (Other Pods, Cluster DNS queries) 53 UDP/TCP Cluster DNS resolution
Snapshot Controller Persistent Volume API (Implicit) N/A - Handles snapshot lifecycle for PVCs

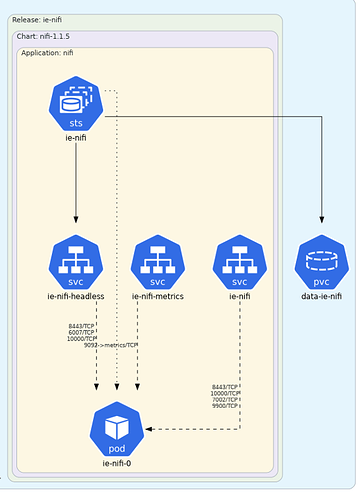

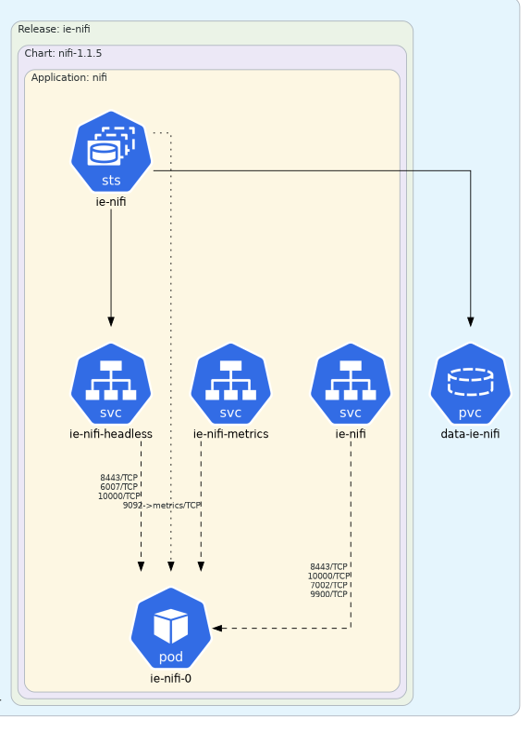

5.8.2 Integration Engine

System Components Overview
Component Type Name Description
NiFi Stateful App StatefulSet ie-nifi Manages NiFi pod lifecycle and ensures stable identity
Headless Service Service ie-nifi-headless Provides internal DNS resolution for NiFi cluster pods
Metrics Service Service ie-nifi-metrics Exposes internal metrics endpoint
Main Access Service Service ie-nifi Provides external access to NiFi instance
Persistent Volume PVC data-ie-nifi Mounted volume for NiFi data
Application Pod Pod ie-nifi-0 The first and primary pod managed by the StatefulSet
Service and Network Port Mapping
Source Target Port(s) Protocol Purpose
ie-nifi-headless ie-nifi-0 8443, 6007, 10000 TCP Internal service discovery and communication
ie-nifi-metrics ie-nifi-0 9092 TCP Prometheus-compatible metrics exposure
ie-nifi ie-nifi-0 8443, 7002, 9900 TCP 8443: For communication with external applications 7002, 9900: Used only for internal communication within application
ie-nifi (STS) data-ie-nifi Volume Mount N/A Stores state, flow configuration, and runtime data

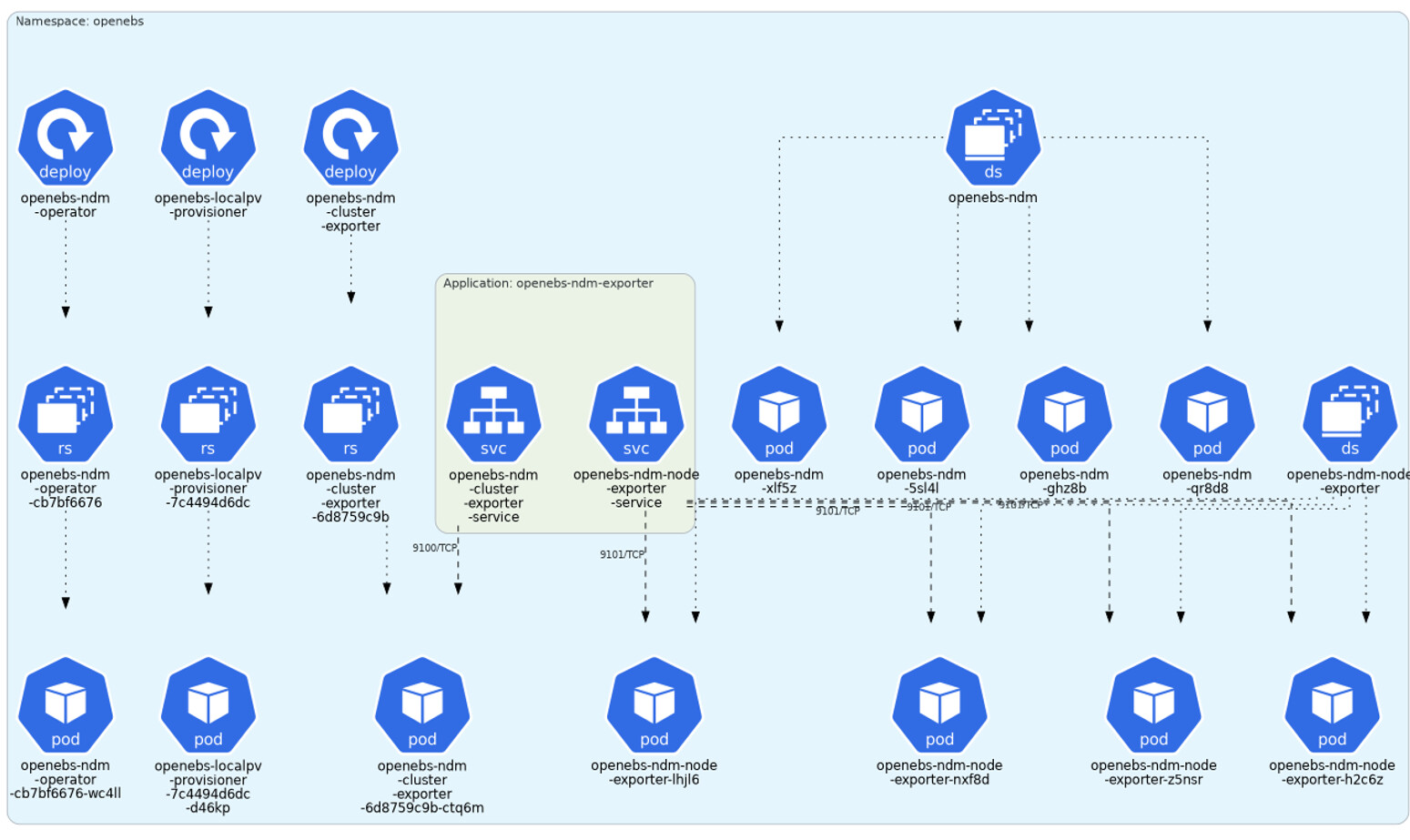

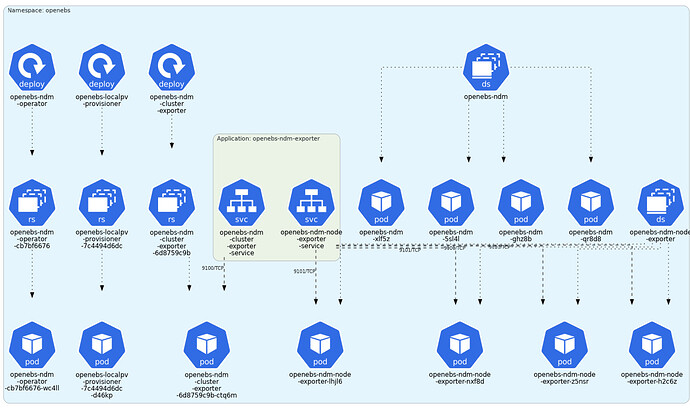

5.8.3 K8 Storage Manager

System Components Overview
Namespace Component Name Type Resource Description
openebs openebs-ndm-operator Deployment ReplicaSet → Pod: cb7bf6676wc4ll NDM operator for managing disk inventory
openebs openebs-localpv-provisioner Deployment ReplicaSet → Pod: 7c44946ddcd46kp Local PV provisioner managing local volumes
openebs openebs-ndm-cluster-exporter Deployment ReplicaSet → Pod: 6d8759c9bctq6m Exposes NDM cluster metrics via Prometheus
openebs openebs-ndm-cluster-exporter-service Service Cluster-wide metrics endpoint Exposes metrics at port 9100/TCP
openebs openebs-ndm-node-exporter-service Service Node-level metrics endpoint Exposes node metrics at port 9101/TCP
openebs openebs-ndm DaemonSet Pods: xlf5z, 5sl4l, ghz8b, qr8d8 Node Disk Manager for block device discovery
openebs openebs-ndm-node-exporter DaemonSet Pods: lhjl6, nxf8d, z5nsr, h2c6z Per-node exporter for disk metrics
Service and Port Mapping
Source Target Port(s) Protocol Purpose / Notes
openebs-ndm-cluster-exporter-service openebs-ndm-cluster-exporter 9100 TCP Prometheus scraping endpoint for cluster metrics
openebs-ndm-node-exporter-service openebs-ndm-node-exporter pods 9101 TCP Prometheus endpoint exposing per-node disk metrics
openebs-ndm DaemonSet Local Nodes N/A N/A Manages block device discovery and monitoring
openebs-localpv-provisioner Kubernetes Storage API N/A N/A Provisions local persistent volumes

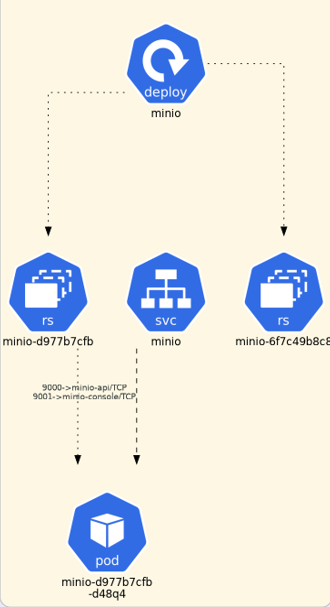

5.8.4 Object Storage

System Components Overview

Component Name Type Resource Description
minio Deployment Manages replica sets and pod creation Deploys and maintains the object storage server
minio-d977b7cfb ReplicaSet Generates and maintains minio-d977b7cfb-d48q4 ReplicaSet managing the active pod
minio-6f7c49b8c8 ReplicaSet Present in history, possibly from earlier rollout An older or parallel ReplicaSet
minio Service Exposes ports 9000 and 9001 Access layer for API and UI traffic
minio-d977b7cfb-d48q4 Pod Running MinIO application instance Active container providing S3-compatible object store
Service and Port Mapping
Source Target Port(s) Protocol Purpose / Notes
minio (Service) minio-d977b7cfb-d48q4 (Pod) 9000 TCP MinIO API endpoint (S3-compatible interface)
minio (Service) minio-d977b7cfb-d48q4 (Pod) 9001 TCP MinIO Console (web-based UI for management)

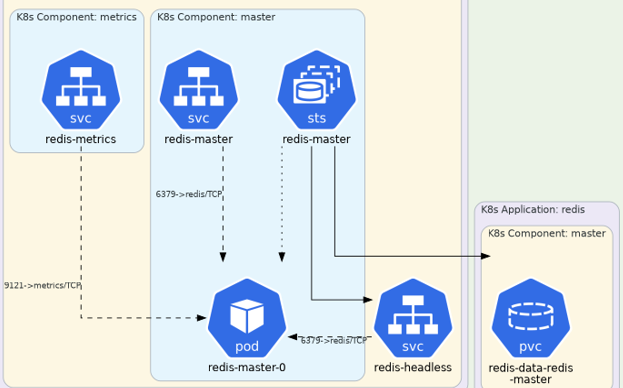

5.8.5 Cache

System Components Overview
Component Name Type Resource Description
redis-master StatefulSet Manages Redis pod lifecycle Ensures ordered, stable deployment of Redis master instance
redis-master Service Exposes Redis master to internal clients Handles Redis traffic on port 6379
redis-headless Headless Service Internal DNS-based service Enables direct pod-to-pod communication
redis-metrics Service Exposes Redis metrics Publishes Prometheus-compatible metrics on port 9121
redis-master-0 Pod Redis master instance pod Active Redis server pod
redis-data-redis-master PersistentVolumeClaim Storage for Redis Mounted by the Redis pod to persist data
Service and Port Mapping
Source Target Port(s) Protocol Purpose / Notes
redis-master (Svc) redis-master-0 6379 TCP Redis database access from other services
redis-headless (Svc) redis-master-0 6379 TCP Direct DNS-based access within the cluster
redis-metrics (Svc) redis-master-0 9121 TCP Exposes metrics for Prometheus or monitoring tools
redis-master-0 (Pod) redis-data-redis-master (PVC) Volume Mount N/A Persistent storage for Redis database files

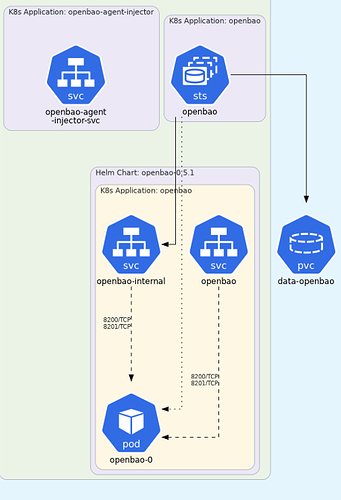

5.8.6 Secret Vault

System Components Overview
Component Name Type Resource Description
openbao StatefulSet Manages lifecycle of OpenBao pods Ensures stable identity and storage for OpenBao nodes
openbao-0 Pod Active OpenBao instance Serves secrets and configuration at standard ports
openbao Service Internal access point to OpenBao pod Exposes service over ports 8200 and 8201
openbao-internal Service Internal service communication Cluster-internal communication for peer pods
data-openbao PVC Persistent storage Volume for storing OpenBao configuration and encrypted secrets
openbao-agent-injector-svc Service Sidecar injector service Injects secrets into workloads via mutating webhook
Service and Port Mapping
Source Target Port(s) Protocol Purpose / Notes
openbao (Svc) openbao-0 (Pod) 8200, 8201 TCP Internal Microservice and API access
openbao-internal (Svc) openbao-0 (Pod) 8200, 8201 TCP Peer and internal cluster communication
openbao-0 (Pod) data-openbao (PVC) Volume Mount N/A Persistent storage for OpenBao data and configs
openbao-agent-injector-svc K8s API Server Webhook HTTPS Injects secrets into annotated pods via admission controller hook

6 Document Versioning & Updates

This is a living document and may be updated at any time to reflect changes in:

  • Application architecture or features
  • Deployment procedures or best practices
  • Infrastructure or platform requirements
  • Roles, responsibilities, or ownership matrices

Disclaimer:
This document may be revised without prior intimation.
Stakeholders are encouraged to refer to the latest version maintained in product knowledge base.

This topic was automatically closed after reaching the maximum limit of 1 reply.
